Madimack Pool Heat Pumps

Madimack Elite V3 170 - 17kW Pool Heat Pump

General
Documentation

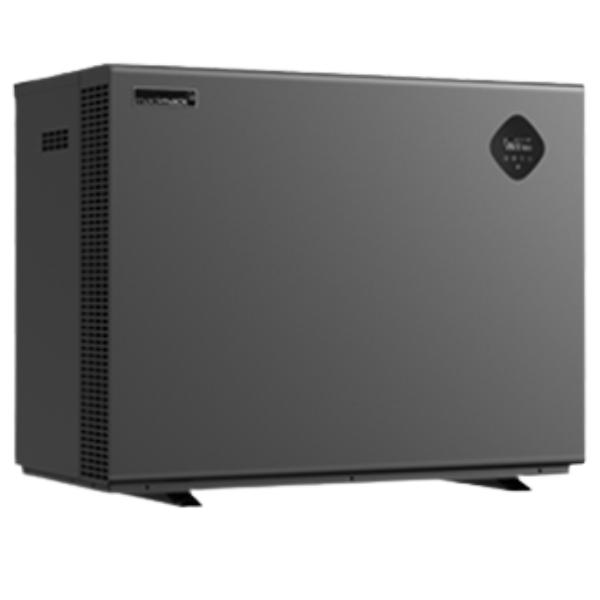

Madimack Elite V3 170 - 17kW Pool Heat Pump

Elite V3 - ADVANCED INVERTER POOL HEAT PUMP SERIES - The Elite V3 has been redesigned from the ground up to bring a revolutionised pool heating system to the Australian market. In conjunction with the newest inverter technology the unit delivers better airflow, higher efficiency, quieter operation and performance.

The unit exclusively delivers market leading installation requirements of 100mm from the back and 300mm from the side, providing space saving options for Australian backyards.

Engineered with durability in mind, the Elite V3 operates at optimal levels even in the most corrosive and erosive environments - achieving a massive 31.8kW in a single phase. The Elite V3 sets the standard for all other heaters.

SP-MM-ESV3-170 Features:

Revolutionary design that redirects airflow to dramatically reduce spatial requirements
Extremely energy efficient with a COP of up to 16.4 Full inverter stepless compressor and fan
Sleek design
Six models up to 31.8kW in single phase
Three phase 40kW model
Patented silent design
Marine grade anti-corrosion aluminium alloy casing Signature diamond touch screen and intuitive display
WiFi with smart functions
Newest most eco-friendly R32 Refrigerant
Three coil evaporator for a more compact unit size TüV Rheinland certified
Up to 40 degrees set point temperature
Industry first centrifugal fan
Advanced cold air performance
Highest performing single phase unit
Air Flow – Premium Side Discharge

Models:

SP-MM-ESV3-110– 11kW – 8.9 Rated Amps - 15A 3 Pin Plug
SP-MM-ESV3-140– 13.8kW – 10.9 Rated Amps - 15A 3 Pin Plug
SP-MM-ESV3-170– 17kW – 14.0 Rated Amps - Single Phase
SP-MM-ESV3-220– 22kW – 17.4 Rated Amps - Single Phase
SP-MM-ESV3-270– 26.9kW – 20.0 Rated Amps - Single Phase
SP-MM-ESV3-320 – 31.8kW – 25.0 Rated Amps - Single Phase
SP-MM-ESV3-400– 40.5kW – 11(3) Rated Amps - Three Phase

Warranty:

Market leading 10 year compressor warranty

Madimack Elite V3 Manual

View

$7,495.00

Available Online
