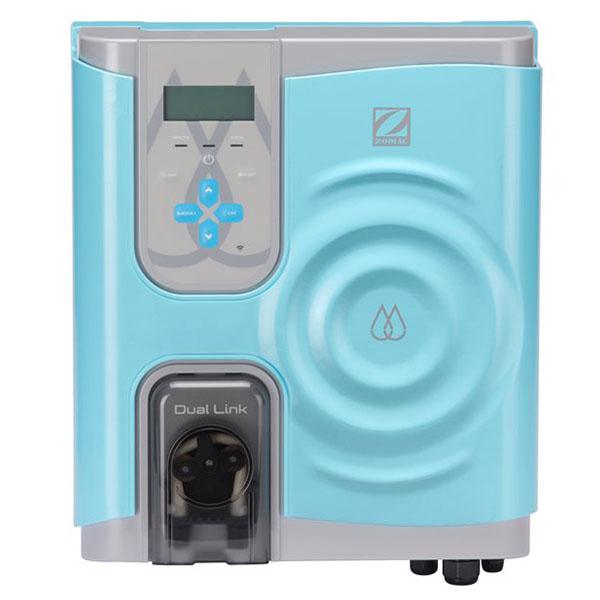

Zodiac Magnapool Hydroxinator iQ Mid

Equipped with iAquaLink control, the all-new Hydroxinator® iQ from Zodiac combines cutting-edge technology with beautiful design to provide the ultimate mineral pool water management solution.

- Long life RP Cell - These upgraded automatic cleaning cell plates have an ultra-long life, combined with smart tech in the chlorine production that will provide years of performance.

- Multi Colour Light Control -Control your pool light(s) directly from the chlorinator (or your smart phone with iAquaLink). This feature requires additional relay box to connect. Ask your nearest dealer for more information.

- Pool Cover Mode - Allows you to connect an automatic pool cover that will automatically drop the output to your desired level without having to do a thing.

- iAquaLink enabled - Features a built-in WiFi chip that allows you to monitor and control remotely, for complete control at your fingertips anytime, anywhere.

- Smart Temperature Sensor - Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.

- Variable Speed Pump Control - Provides greater control over pump speed and helps reduce energy consumption. The Hydroxinator can communicate to RS485 enabled pumps.

Specifications:

Normal chlorine production - 25 g/h
Recommended pool size (in mild climate) - 75,000L
Operating Mode - Normal = adjustable by 10% increments from 0% - 100%, Low Mode = adjustable range 0 to 30%, Boost Mode = continuous 100% for 24hrs
Mineral Level - 4000ppm recommended (minimum - 3300ppm)
Cell Protection - Temperature sensor controls chlorine output in cold water conditions assisting to protect cell against excessive wear and tear.
Warning Indications - "Low salt"" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal.
Power Supply - 197 W / 110-240 VAC / 50-60 Hz
Power Pack Dimensions (HWD) - 370mm x 320mm x 100mm
Cell Dimensions (HWD) - 160mm x 320mm x 110mm

Warranty:

4 years or 8000 running hours which ever comes first.

2 years only on pH and ORP sensors.

1 year on peristaltic pump, tubing, one-way valve, with pH or PRO models

Zodiac Magnapool Hydroxinator iQ Pro Manual

View

AVAILABLE IN-STORE ONLY

General
Videos
Documentation

Zodiac Magnapool Hydroxinator iQ Mid

Equipped with iAquaLink control, the all-new Hydroxinator® iQ from Zodiac combines cutting-edge technology with beautiful design to provide the ultimate mineral pool water management solution.

- Smart Temperature Sensor - Automatically regulates output in cold water which prevents excessive wear and tear on your cell, helping to reduce costs.

- Variable Speed Pump Control - Provides greater control over pump speed and helps reduce energy consumption. The Hydroxinator can communicate to RS485 enabled pumps.

Specifications:

Normal chlorine production - 25 g/h
Recommended pool size (in mild climate) - 75,000L
Operating Mode - Normal = adjustable by 10% increments from 0% - 100%, Low Mode = adjustable range 0 to 30%, Boost Mode = continuous 100% for 24hrs
Mineral Level - 4000ppm recommended (minimum - 3300ppm)
Cell Protection - Temperature sensor controls chlorine output in cold water conditions assisting to protect cell against excessive wear and tear.
Warning Indications - "Low salt"" indicator light: Reduced production to protect the electrode. “No flow” message: Production is interrupted as long as conditions are not ideal.
Power Supply - 197 W / 110-240 VAC / 50-60 Hz
Power Pack Dimensions (HWD) - 370mm x 320mm x 100mm
Cell Dimensions (HWD) - 160mm x 320mm x 110mm
