Chemigem CM55 Commercial Auto Dosing System - Complete w. 2 x D1500 Peristaltic Pump

General
Documentation

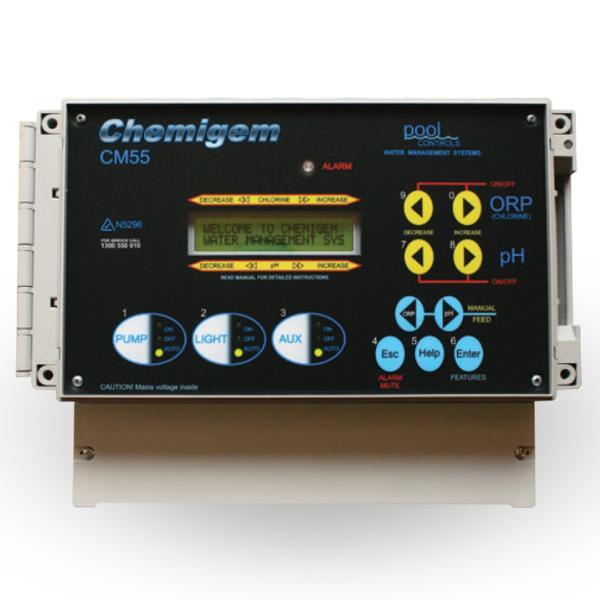

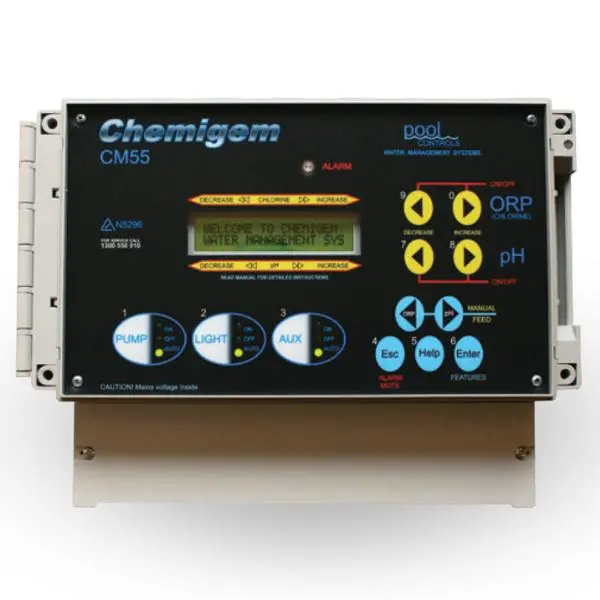

Chemigem CM55 Commercial Auto Dosing System - Complete w. 2 x D1500 Peristaltic Pump

The Chemigem CM55 is a fully- automated water management system suitableforcommercial applications of all sizes.

Health regulations in many Australian States require water chemistry to be automated and the Chemigem CM55 provides a reliable, cost-effective solution for public aquatic facilities.

CM55 D1500 Peripumps
Dose Rate - 1500mL/sec
Total Dose at 50% Duty - 750mL/min overall 30 second feed each

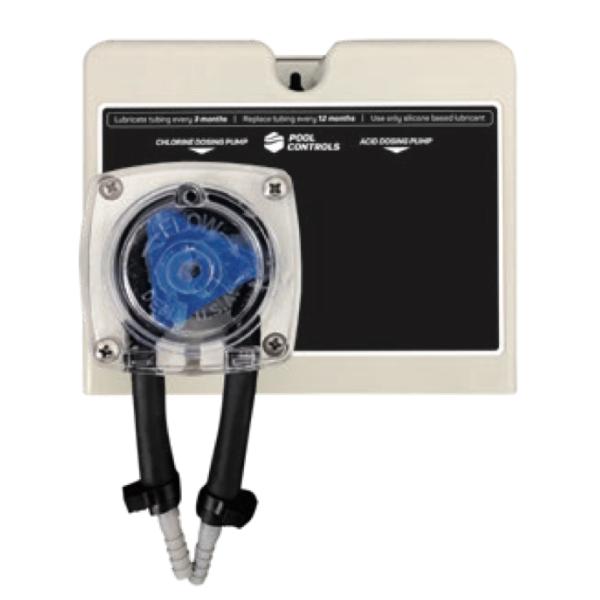

The highly-efficient D1500 peristaltic pump is able to deliver up to 1500mL per minute, ensuring full sanitisation for large pools and bather loads.

Specifications:

Enclosure - Plastic case, Wall Mounting (Rear keyhole slots)
Power Supply - 240 Volt 50 Hz. Others on request / Nominal Current 0.5 amps
Pumps - 240V AC Peristaltic
Motors Speed - 100rpm
Flow Rates - 1500 mL / min
Squeeze Tube - EPDM, Maximum continuous working pressure of 100 kPa
Maximum Nominal - 1500 ml/min (1 cps), adjustable by time

Warranty - 12 Months

Chemigem CM55 User Manual

View

Chemigem CM55 Brochure

View
