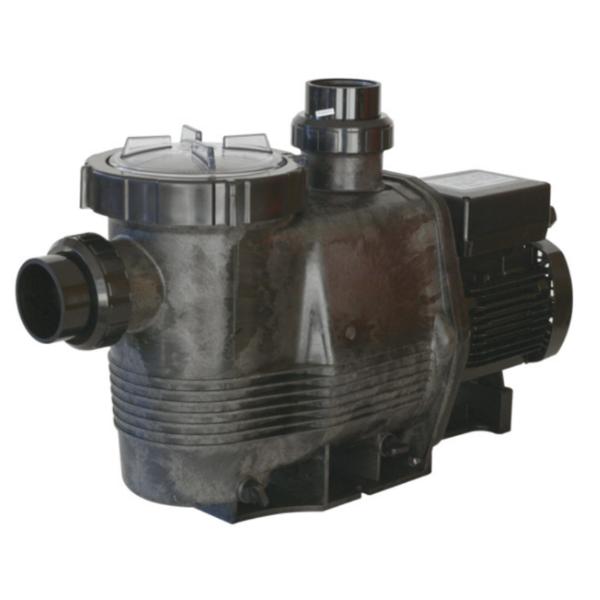

Waterco Hydrostorm Plus 300 - 3.0 HP Pool Pump

The Hydrostorm plus has all the proven features of the Hydrostorm with the addition of an innovative lid & lock ring for easier maintenance and a larger strainer basket for increased capacity.

Designed for commercial and extra large domestic pools. Waterco high performance pumps provide the extra power needed to cope with ancillary systems like water features, in floor cleaning, vacuum cleaning and swim/spa jets.

Efficient Impeller and Diffuser Design - The pump’s impeller and diffuser design maximizes the hydraulic output of the pump while minimizing turbulence. The pump’s efficient hydraulic performance shortens run times and reduces energy consumption leading to lower operating costs.

Engineered Durability - The pump body is manufactured utilising state of the art engineering plastic moulding with a single piece strainer pot and volute for extra strength. A high grade 316 stainless steel mechanical seal is incorporated for extra protection against corrosion. e.g. from chlorinated water, ozone, iodine, Baquacil, bromine and salt water.

Features:

Clear basket lid.
Quick connect barrel unions for UPVC pipe.
High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly.
High performance motor: IP55 rating / Motor shaft 431 grade stainless steel / Fan cooled / Thermal overload protection
Stable support base.
Hydraulically efficient impeller and diffuser design.
Strong single piece glass filled thermoplastic pump body.
Drain plugs.
Extra large strainer basket – captures debris and protects the impeller - 2.25L
Motor protection bracket protects the motor from a leaking mechanical seal

Specification:

Flow rate (lpm) 8m - 540
Flow rate (lpm) 10m - 500
Nom. HP - 3
kW - 2.37
Amps - 11
Phase - 1
Total Length (mm) - 730
Motor Frame (mm) - 90
Inlet/Outlet - 65mm ports x / 50mm unions

Warranty - 3 Years - Wet End, 2 Years - Motor, mechanical seal, O’ ring, basket & impeller, 1 Year - Commercial applications & Labour

Waterco Hydrostorm Plus Brochure

View

Waterco Hydrostorm Plus Manual

View
