Balboa GS501Z Controller and Touchpad

General

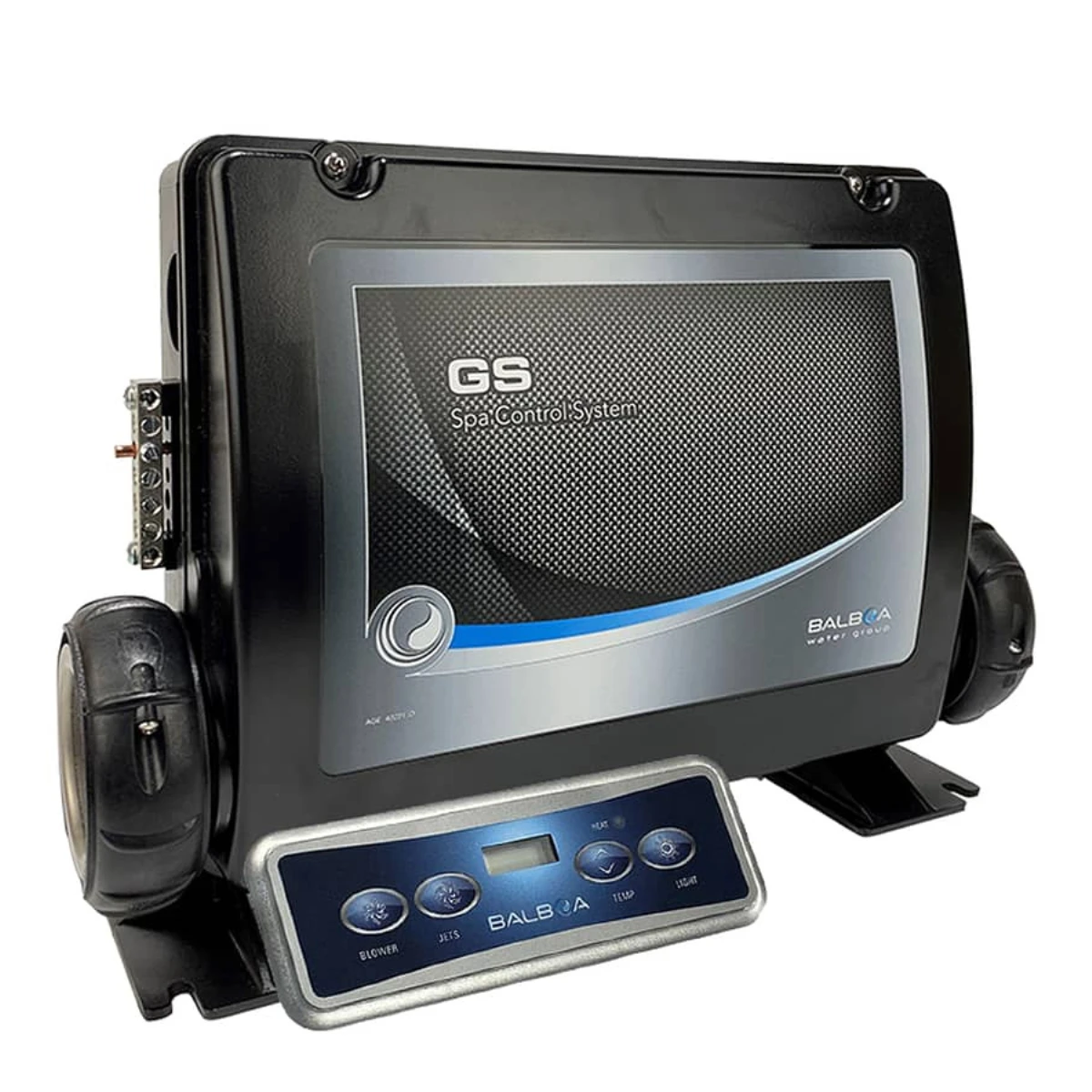

Balboa GS501Z Controller and Touchpad

Comes complete with controller & touchpad

GS501Z 240volt Output Sockets
CPUMP: Circ pump (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
BLOWER: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system

GS501Z Features:

GS501Z Low Voltage
In heater temp sensors
1 x Light
1 x AUX Outlet
Max Temp 40 degrees
Adjustable Filtration
2 x Touchpad Outlets
Sleep & Economy Mode
IR Receiver
Programmable Load Shedding

Specification:

Heater Wattage: 3000w
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions: Length: 382mm, Height: 275mm, Width: 110mm, Weight: 3.8kg
Touchpad (Face Size) Dimensions: Length: 106mm, Depth: 35mm, Width: 56mm
Touchpad (Hole Size) Dimensions: Length: 135mm, Width: 38mm
Touchpad Lead Length: Dimensions: 2.0m

Warranty - 1 Year Warranty

$1,075.00

Free Shipping

Available Online
