Aqua-Quip Flow Control Timer w. Flow Switch

General
Documentation

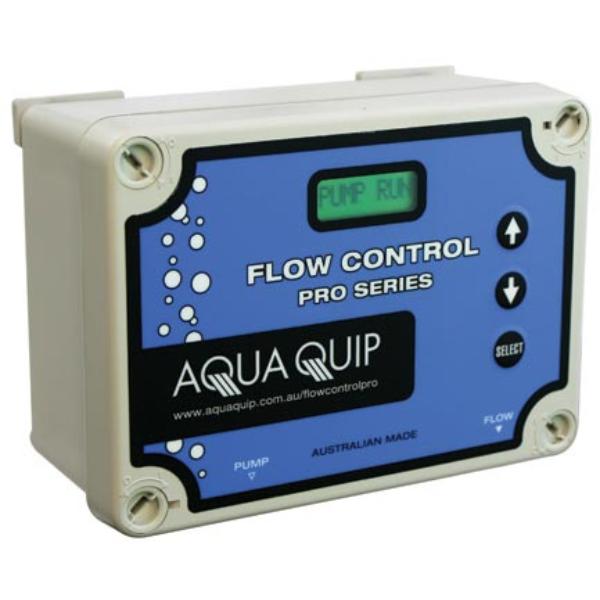

Aqua-Quip Flow Control Timer w. Flow Switch

Aqua-Quip Timer Control Centres are designed to give you complete automatic control of your booster-driven pool cleaning system. The delay timer provides power to the booster pump 15 minutes after pool pump is activated.

Aqua-Quip Flow Control Timer eliminates the possibility of the booster pump running dry of water as a result of incorrect synchronisation with the pool pump. It helps reduce wear and tear on the pool cleaner and saves expensive pump repairs.

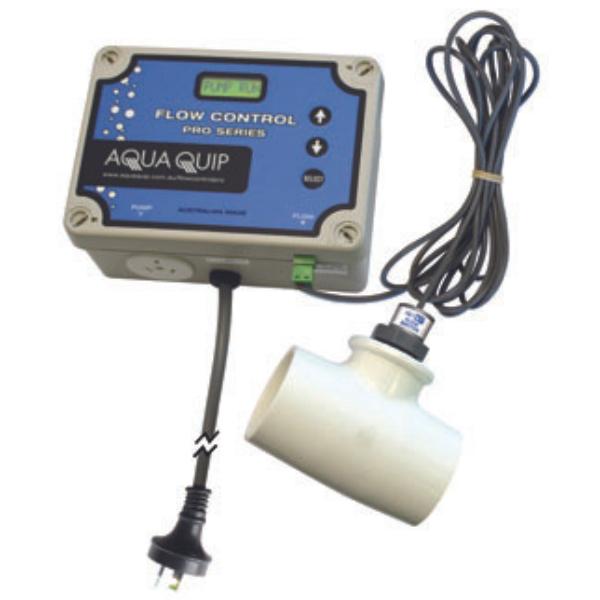

Supplied complete with integrated flow switch, the Aqua-Quip Timer Control Centre is designed to give you complete automatic control of your booster-driven pool cleaning system.

The in-built delay timer provides power to the booster pump for a user-specified amount of time, 30 seconds after constant water flow is detected in the pipework. When water flow stops or is significantly reduced, the integrated flow switch shuts down the booster pump and will only re-start when water flow resumes.

Features:

The Aqua-Quip Flow Control Timer eliminates the possibility of the booster pump running dry of water as a result of incorrect synchronisation with the pool pump.
Reduces wear and tear on the pool cleaner and saves expensive pump repairs
Saves power consumption by limiting the operating hours of the booster pump
The Aqua-Quip Flow Control Timer can be used for a variety of applications where water flow is required to switch on an auxilliary electrical device
The Aqua-Quip Flow Control Timer with its integrated flow switch is significantly more reliable and much simpler than installing two separate time clocks
Latest technology provides better pump protection and resolves all the problems with earlier generation models

Specification:

Flow Switch sensor cable is 2.4m long.
Flow Control Box Power Cable is 1.8m long and should be plugged directly into a constant 240v power outlet.
Flow Switch has a 3/4” BSP thread, and screws into a Cat 21 Faucet Tee.
Faucet Tee is available in either 40mm or 50mm.

Warranty - Sydney run business Aqua-Quip commit to a 2 year warranty

Aqua-Quip Flow Control Timer Brochure

View

Aqua-Quip Flow Control Timer Manual

View
