Waterco Baker Hydro Pool Pumps

Baker Hydro Vesta - 1.0 HP Pool Pump

General
Details
Documentation

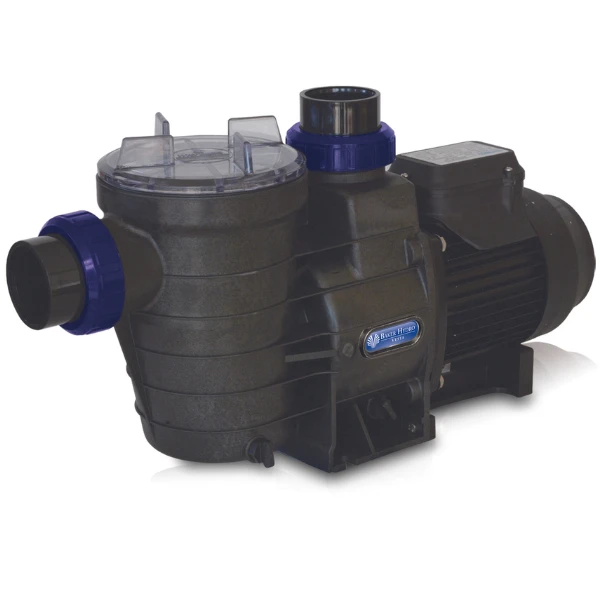

Baker Hydro Vesta - 1.0 HP Pool Pump

Vesta pumps are ideal for large domestic swimming pools with ancillary systems such as heating, in-floor cleaning, fountains, vacuum cleaning and swim jets.

Efficient Design - The Vesta’s hydraulic design maximizes the output of the pump while minimizing turbulence. The pump’s efficient performance shortens run times and reduces energy consumption.

Engineered Durability - Vesta’s pump body is manufactured utilising state of the art engineering plastic moulding with a single piece strainer pot and volute for extra strength.

Features:

Clear basket lid - easy visual inspection.
50mm quick connect barrel unions for UPVC pipe.
High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly.
High performance motor - Fan cooled / Thermal overload protection.
Stable support base.
Secondary seal - for extra protection.
Secondary seal drain pipe.
Hydraulically efficient impeller and diffuser design.
Drain plugs.
Strong single piece glass filled thermoplastic pump body.
12.1 litre strainer basket - capture debris and protects the pump’s impeller.

Patented Secondary Seal - Situated between the pump’s wet end and motor, a mechanical seal forms a seal around the motor shaft to prevent water from running out along the motor’s shaft. The mechanical seal is the wearing part of any pool pump.

A mechanical seal may leak water if the pump is ever run dry or simply worn out. If a leaking mechanical seal is not replaced promptly, water will travel along the motor’s shaft and ruin the motor in a very short period of time.

Vesta's Secondary Seal protects the pump motor’s end shield from any water contact, by capturing any leaks and draining it out of the pump.

Warranty - Wet End = 3 years, Motor = 2 years, Commercial Applications = 1 year, and Labour = 1 year.

Watermaid Baker Hydro Vesta Manual
